PRODUCT DESCRIPTION
The A8 series integrated fiber laser marking machine is a high-speed continuous coding model designed specifically to enhance production efficiency. Adopting a self-developed laser source, it features higher stability, reliable performance and fast marking speed to meet the demands of high-speed and large-volume production lines.
It is mainly used for production date coding, anti-counterfeiting marking, and coding applications in the food and pharmaceutical packaging industries. The machine supports automatic coding, serial numbers, batch numbers, date codes, barcodes, QR codes, automatic numbering and other functions to meet various marking requirements of different customers.
It is suitable for online marking on most metals and some surface-treated non-metallic materials, such as metal products, PVC, HDPE, aluminum film, rubber, plastics and more.
It is widely used in personal care, food and beverage packaging, alcohol, dairy products, electronic components, chemical and building materials industries for marking production and expiration dates, batch numbers, shift codes, company names, logos and other graphics and text content.
PRODUCT DISPLAY

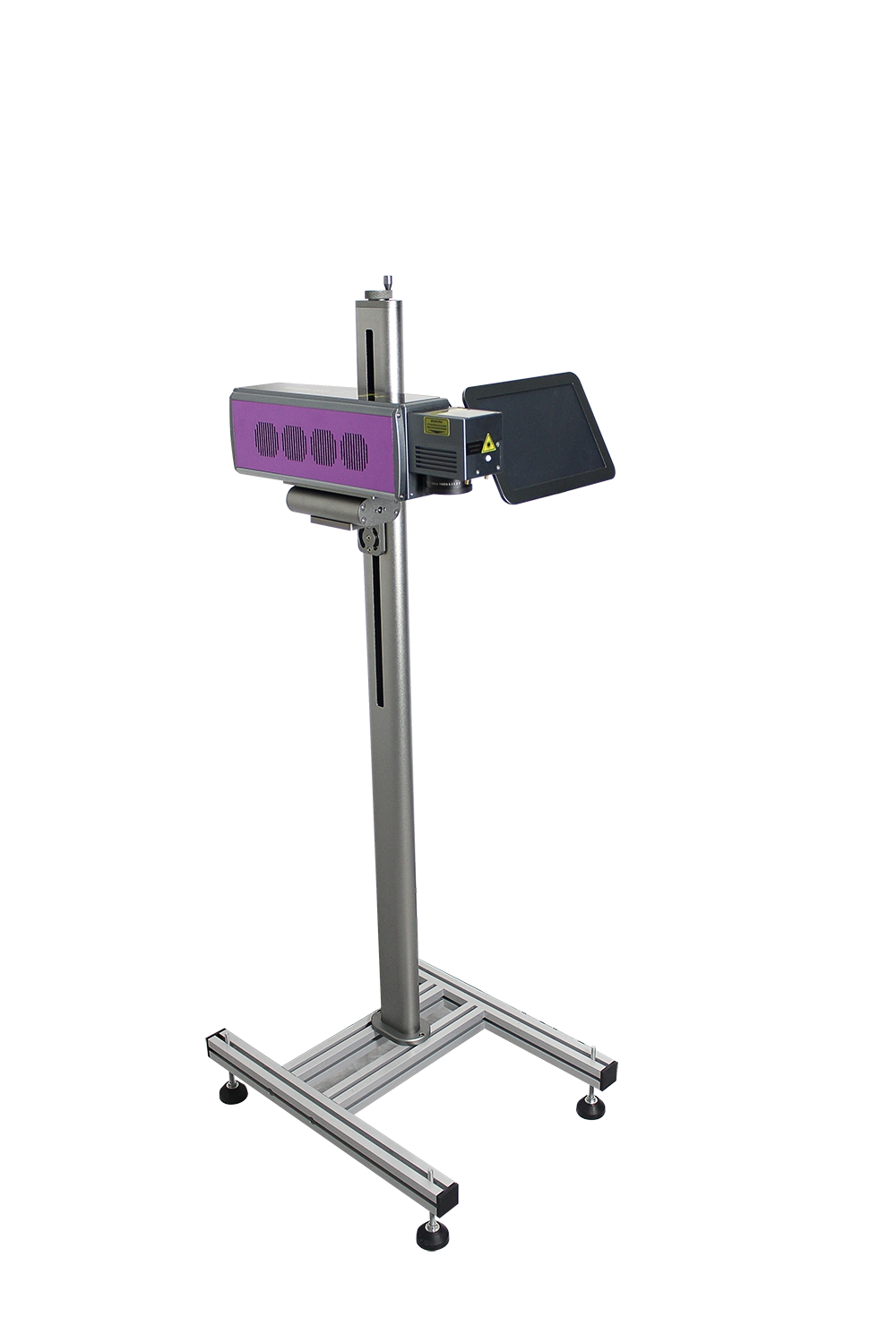

A8Series
Integrated Fiber Laser Marking Machine
The A8 series features a self-developed integrated fiber laser marking system for enhanced reliability. The laser offers high pumping efficiency, adjustable or fixed pulse waveforms, and a wide range of pulse repetition frequencies. With a compact design and stable performance, it delivers the optimal laser solution to meet your application requirements.

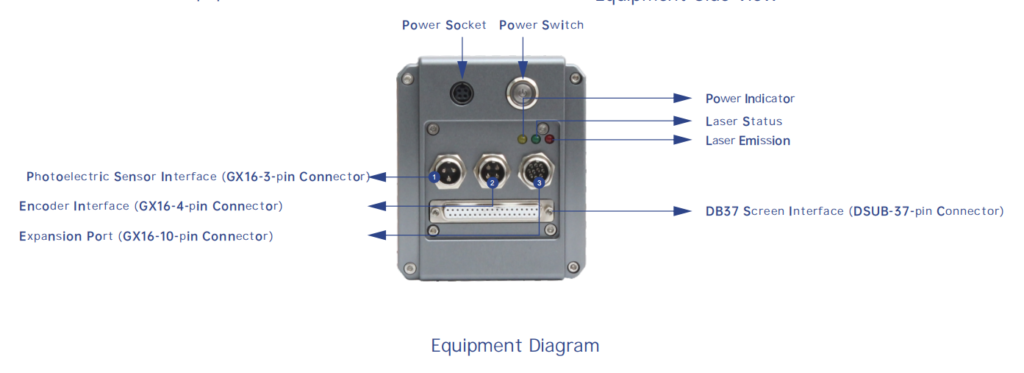

INTERFACE DESCRIPTION
1. Photoelectric Sensor Interface (GX16-3-pin Connector)
Only NPN-type photoelectric sensors are supported. The pin definitions are as follows:
| Pin | Function | Description |
|---|---|---|
| Pin1 | IF_12-24V | Power output, directly connected to the power supply for PL14_Pin1 input. |
| Pin2 | TRIGGER | Photoelectric sensor signal input. |
| Pin3 | GND | Ground. |
2. Encoder Interface (GX16-4-pin Connector)
Only NPN output type encoders are supported.
| Pin | Function | Description |
|---|---|---|
| Pin1 | IF_12-24V | Power output, directly connected to the power supply for PL14_Pin1 input. |
| Pin2 | EnCo_SA | NPN encoder phase A input. |
| Pin3 | EnCo_SB | NPN encoder phase B input. |
| Pin4 | GND | Ground. |
3. Expansion Port (GX16-10-pin Connector)
| Pin | Function | Description |
|---|---|---|
| Pin1 | IF_12-24V | Power output, directly connected to the power supply for PL14_Pin1 input. |
| Pin2 | CTL_IO0 | Control input/output port 0, configurable via software as input or output. When used as output, it is open-collector (NPN type), max. 500mA. When used as input, it is NPN type input. |
| Pin3 | CTL_IO1 | Control input/output port 1, configurable via software as input or output. When used as output, it is open-collector (NPN type), max. 500mA. When used as input, it is NPN type input. |
| Pin4 | CTL_IO2 | Control input/output port 2, configurable via software as input or output. When used as output, it is open-collector (NPN type), max. 500mA. When used as input, it is NPN type input. |
| Pin5 | CTL_IO3 | Control input/output port 3, configurable via software as input or output. When used as output, it is open-collector (NPN type), max. 500mA. When used as input, it is NPN type input, and can be used as phase A input for the second encoder. |
| Pin6 | CTL_IO4 | Control input/output port 4, configurable via software as input or output. When used as output, it is open-collector (NPN type), max. 500mA. When used as input, it is NPN type input, and can be used as phase B input for the second encoder. |
| Pin7 | GND | Ground. |
| Pin8 | RS232_TX | RS232 communication serial port transmit output. |
| Pin9 | RS232_RX | RS232 communication serial port receive input. |
| Pin10 | GND | Ground. |
APPLICATION SCENARIO
Electrical & Electronic Components
Semiconductor & Electronic Components
Aerospace & Automotive
Food, Beverage & FMCG
Pharmaceutical & Medical Devices
Cosmetics, Personal & Home Care
MARKING EFFECT
● Soda Can Marking
● Hardware Parts Marking
● Electronic Component Marking
● Iron Wire Marking
● ABS Tube Marking
● Plastic Bag Production Date Marking
PRODUCT FEATURE

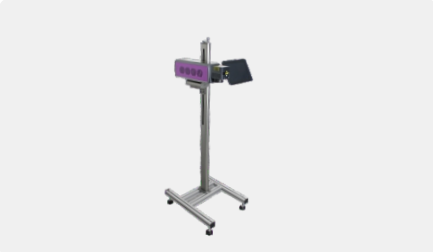

Highly Efficient and Stable Marking Speed
Featuring the fastest marking speed in the industry, this laser coding system is suitable for use in high-frequency marking applications.

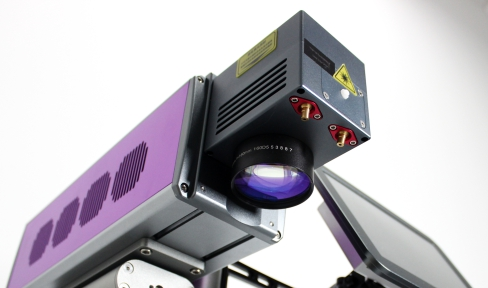

Reliable and Durable Fiber Laser Source
Equipped with a self-developed laser for higher reliability. It features even power density, a highly focused laser beam for better marking contrast, and a rated service life of up to 100,000 hours.

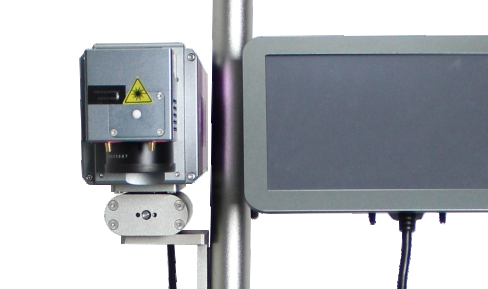

Ultra-compact Design with Dual Red Light Focusing System
With an industry-innovative compact laser marking head, it enables easy integration, lower installation costs, and improved positioning flexibility. It also features a dual red light focusing system.

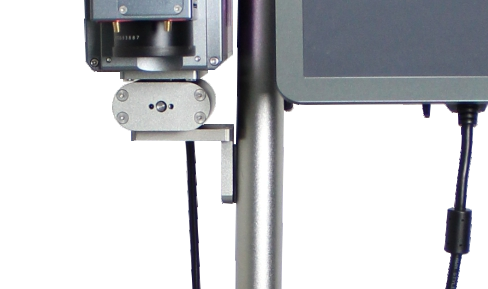

Flexible Installation and Convenient Position Adjustment
Designed for integration into high-speed production lines, it can be flexibly combined with workbenches. Marking position can be adjusted in multiple dimensions.
