PRODUCT DESCRIPTION
The A9 Series Fiber Online Flying Laser Marker is a high-speed continuous marking model designed to boost productivity. It adopts top-tier domestic fiber laser with higher reliability, stable performance and fast processing efficiency. With a marking speed of up to 100 pieces/min for 3mm-height QR codes and 100 pieces/min for production date codes, it meets the marking requirements of high-speed and high-volume applications, mainly for production date coding, anti-counterfeiting marking, and pharmaceutical & food packaging industries. This model supports automatic coding, serial numbers, batch numbers, date coding, barcodes, QR codes, automatic number increment and other functions to meet the needs of customers in different industries.
The fiber laser online marking machine is suitable for online marking on most metal materials and some surface-treated non-metal materials, such as metal products, PVC, HDPE, aluminum film, rubber and plastics. It is widely used in industries such as personal care products, food & beverage packaging, alcohol, dairy products, electronic components, and chemical building materials, for marking graphics and text including production/expiry dates, batch numbers, shifts, manufacturer names and logos.

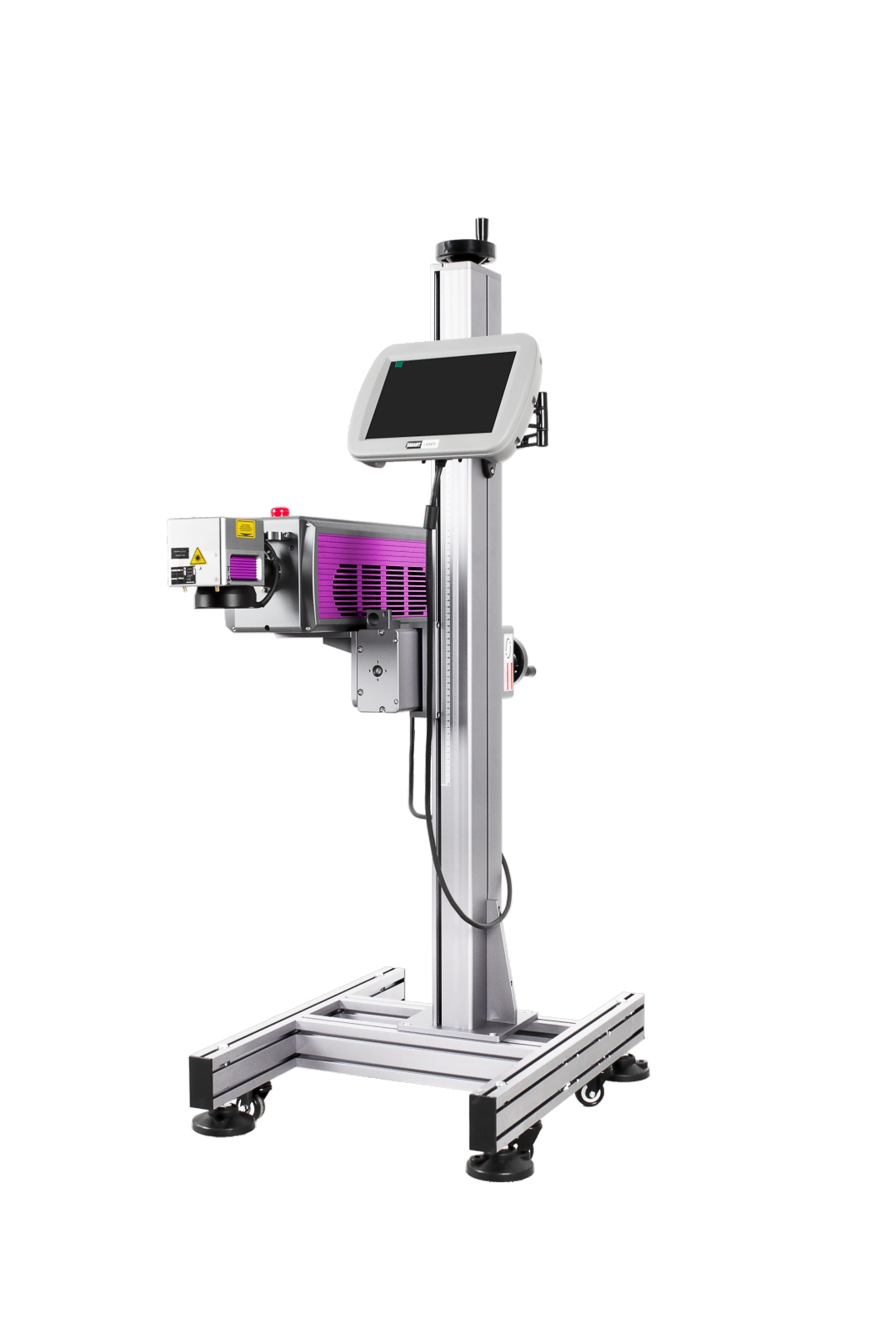

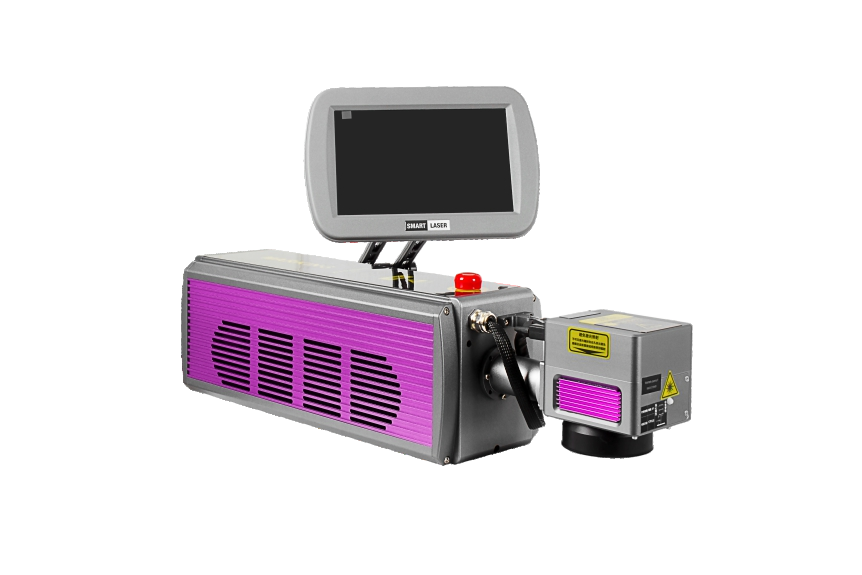

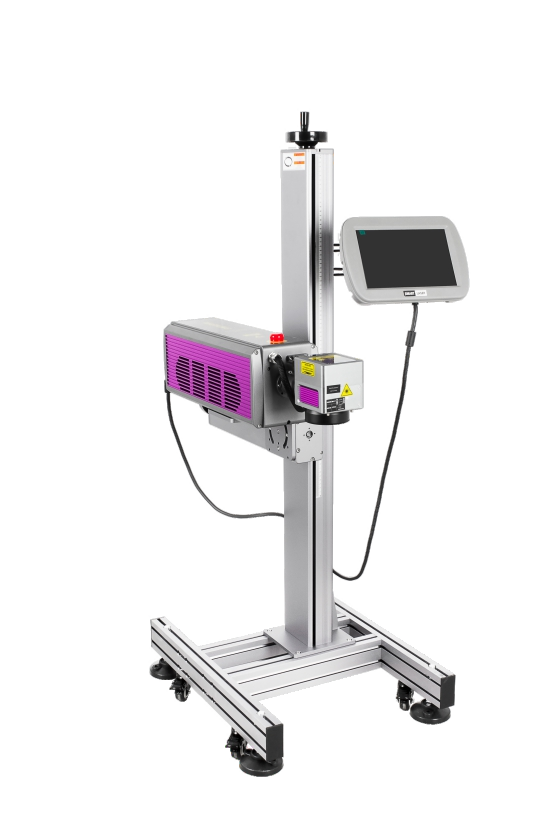

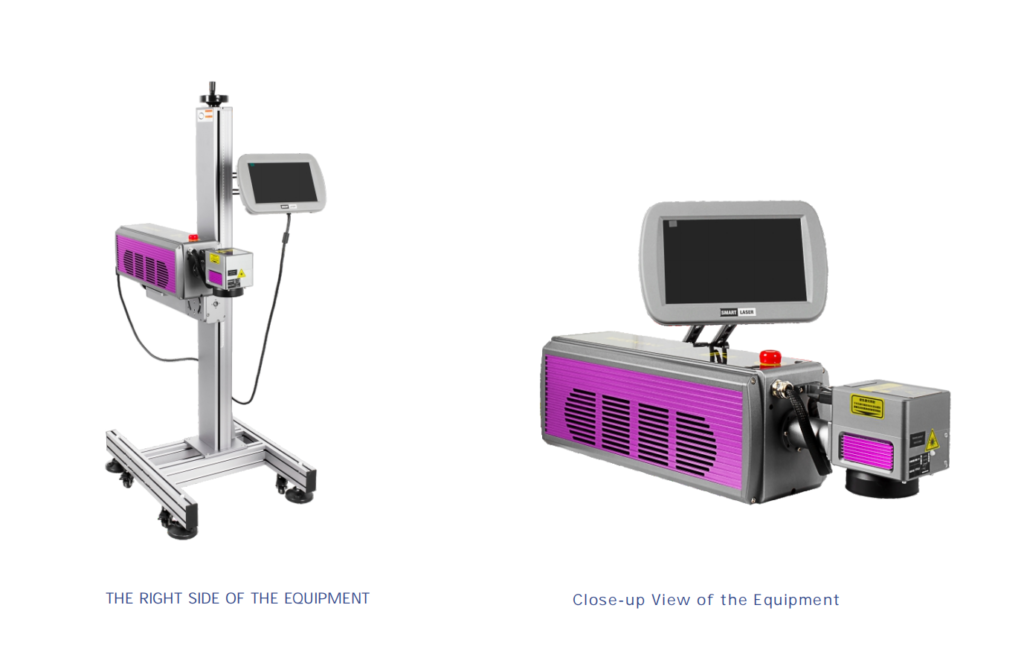

PRODUCT DISPLAY
PRODUCT PARAMETER
| Model Series | A Series | ||||
|---|---|---|---|---|---|
| Model | A9-M20 | A9-M30 | A9-M40 | A9-M60 | |
| Laser Parameters | Laser Model | 20M | 25M | 35M | 55M |
| Output Power | 18.5W | 27W | 40W | 55W | |
| Beam Quality M² | ≤2 | ≤2 | ≤2 | ≤2 | |
| Pulse Repetition Rate | 20-80 kHz | ||||
| Laser Wavelength | 1064nm | ||||
| Output Power Stability | < 5% | ||||
| Design Service Life | Approx. 100,000 working hours (not usage life) | ||||
| Optical Characteristics | Marking Range | 50~300mm (optional range) | |||
| Engraving Depth | 1mm (depends on power and time) | ||||
| Engraving Speed | 10000mm/s | ||||
| Repeat Accuracy | ±0.002 | ||||
| Minimum Marking Line Width | 0.1mm | ||||
| Minimum Character Height | 0.15mm | ||||
| Operating Environment | Cooling Method | Built-in air cooling | |||
| Power Supply | 600W / 220V / 50Hz (110V available) | ||||
| Temperature & Humidity | 0~40°C, 30%≤RH≤85%; air conditioning required beyond range | ||||
| Oil Mist & Condensation | Not allowed | ||||
| Other Parameters | Operating System | Flying marking system | |||
| File Format | Supports text, QR codes, barcodes, serial numbers, graphics, etc. | ||||

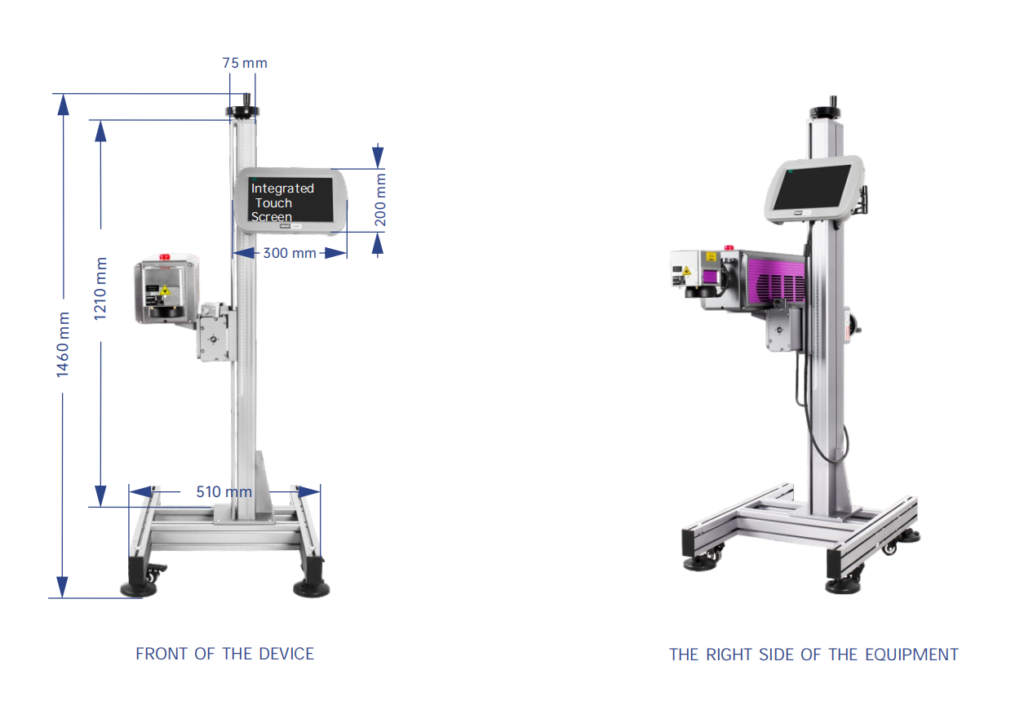

| Dimensions | 660×510×1460 mm | ||||
| Packing Size | Main unit: 780×330×280 mm; Stand: 1340×340×240 mm | ||||
| Net Weight | Approx. 15KG; with stand approx. 38.5KG | ||||
| Gross Weight | Approx. 18KG; with stand approx. 43.8KG | ||||
APPLICATION SCENARIO
Electrical & Electronic Components
Semiconductor & Electronic Components
Aerospace & Automotive
Food, Beverage & FMCG
Pharmaceutical & Medical Devices
Cosmetics, Personal & Home Care
MARKING EFFECT

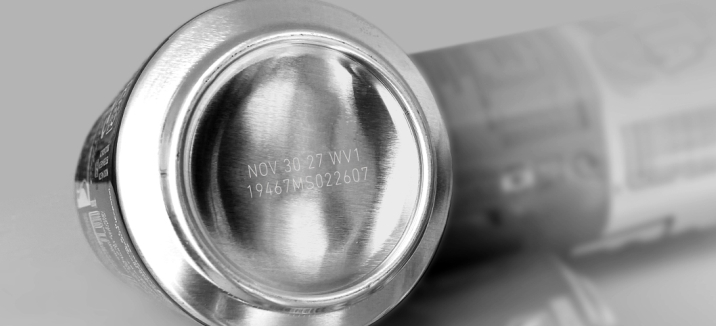

● Soda Can Marking

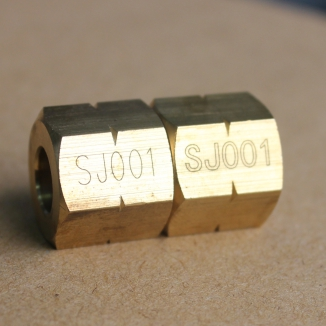

● Hardware Parts Marking

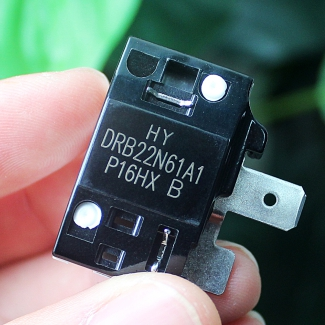

● Electronic Component Marking

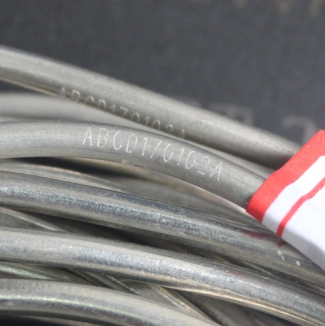

● Iron Wire Marking

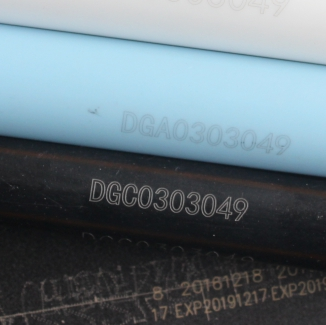

● ABS Tube Marking

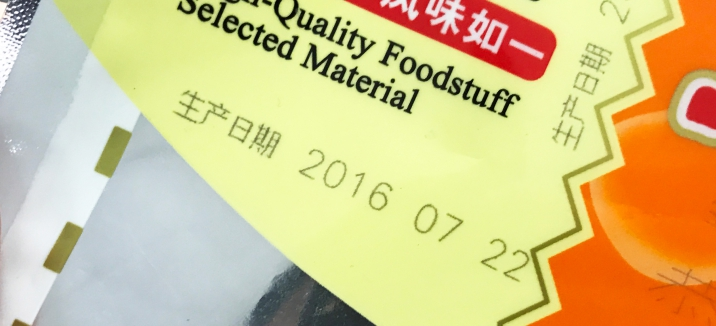

● Plastic Bag Production Date Marking
PRODUCT FEATURE

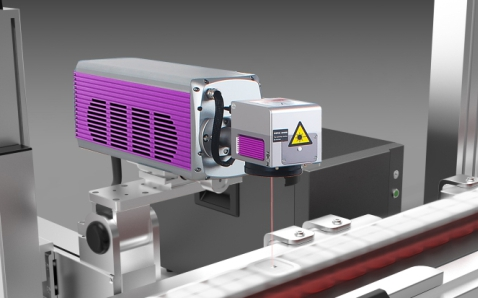

Marking Speed up to 200 m/min
As the fastest laser marking system in the industry, it offers a marking speed of up to 200 meters per minute (for numbers and letters with 2mm line height), making it suitable for medium-speed and high-speed production lines.

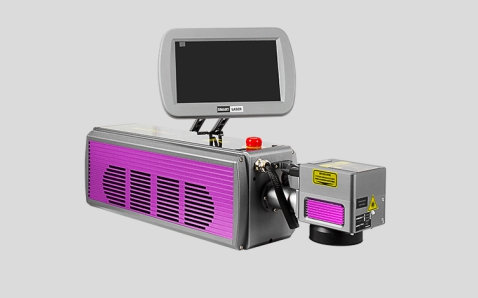

Reliable & Durable Fiber Laser Source
Adopting top-tier domestic fiber laser for higher reliability. With uniform laser power density and highly focused laser beam, it achieves better marking contrast. The laser has a design life of up to 100,000 hours.

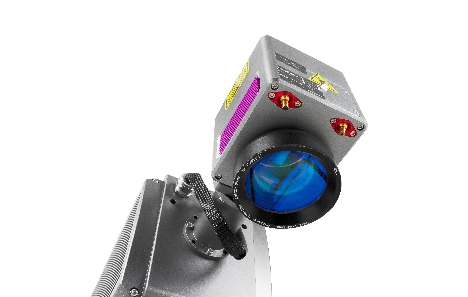

Ultra-compact Design & Flexible Configuration
Featuring an industry-innovative compact laser marking head for easy integration, reducing installation costs and improving positioning flexibility.
Flexible Installation & Easy Position Adjustment
Designed for high-speed production lines, the flying model can be flexibly installed with the production line. The frame can be adjusted up, down, left, and right, and the marking head can also rotate 360° for marking.
