Product Description

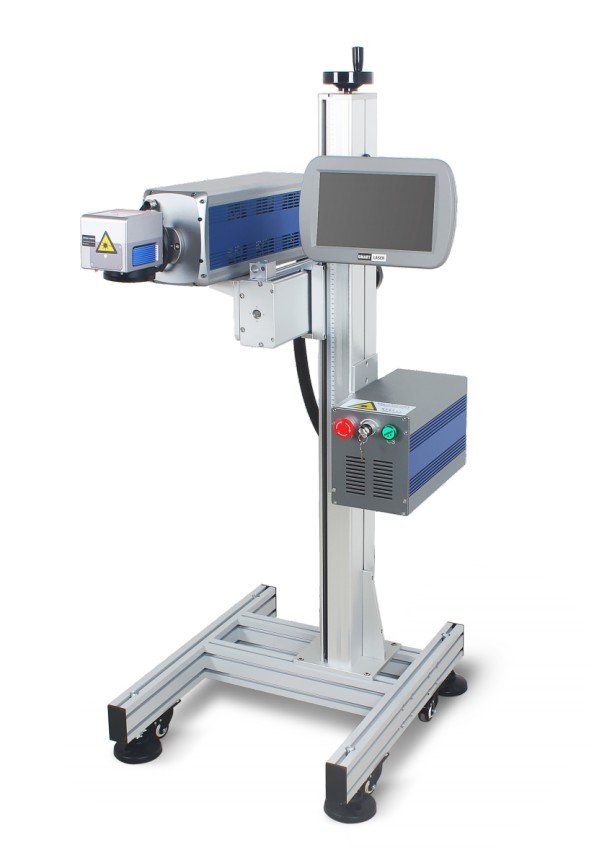

The G-Series CO₂ Flying Laser Marking Machine is a high-speed continuous marking model designed to boost productivity. It adopts a Dawei industrial-grade metal RF CO₂ laser, which features excellent optical mode and high processing efficiency. With a production line marking speed of up to 200 m/min (for single-line numbers and letters with a height of 2 mm), it meets the marking requirements of high-speed and high-volume applications, mainly for production date coding, anti-counterfeiting marking, and pharmaceutical & food packaging industries.
This model supports automatic coding, serial numbers, batch numbers, date coding, barcodes, QR codes, automatic number increment and other functions to meet the needs of customers in different industries.
The CO₂ flying laser marking machine is suitable for online marking on most non-metallic materials, such as paper packaging, film packaging, coated metals, acrylic, resin, plastics, bamboo and wood products, PVC products, etc. It is widely used for marking graphics and text including production/expiry dates, batch numbers, shift codes, manufacturer names and logos in industries such as food & beverage packaging, alcohol, dairy products, garment accessories, leather, electronic components, pharmaceuticals, personal care products, tobacco, and chemical building materials.

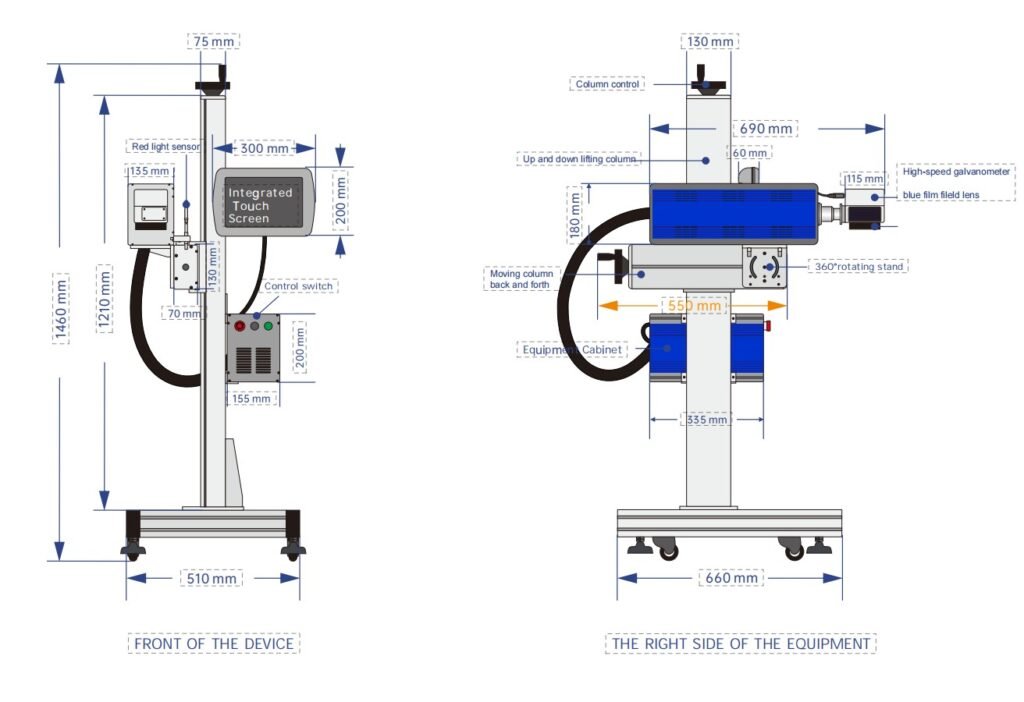

PRODUCT SIZE
PRODUCT PARAMETER
| Model Series | G Series (Dawei Laser) | |||||||
|---|---|---|---|---|---|---|---|---|
| Model | G300L | G300 | G300D | G301 | G600 | G800 | G1000 | |
| Laser Parameters | Laser Model | DW-D30L | DW-D35L | DW-D35 | DW-D35i-9.3 | DW-D55 | DW-T80 | DW-D100 |
| Output Power | >25W | >35W | >40W | >25W | 60W | 80W | 100W | |
| Beam Quality M² | ≤1.2 | ≤1.2 | ≤1.2 | ≤1.2 | ≤1.2 | ≤1.3 | ≤1.3 | |
| Laser Wavelength | 10.55-10.6 um | 10.55-10.6 um | 10.55-10.6 um | 9.3 / 10.2 um | 10.55-10.6 um | 10.55-10.6 um | 10.55-10.6 um | |
| Pulse Frequency | 0-25 kHz | |||||||
| Output Beam Diameter | 1.8±0.2 mm | |||||||
| Output Power Stability | ±5% | |||||||
| Service Life | Approx. 20,000 working hours (not usage life) | |||||||
| Optical Features | Marking Area | 100~300mm (Optional) | ||||||
| Engraving Depth | ≤1mm (depends on power & time) | |||||||
| Engraving Speed | ≤10000mm/s | |||||||
| Repeat Accuracy | ±0.002 | |||||||
| Min. Marking Line Width | 0.1mm | |||||||
| Min. Character Height | 0.15mm | |||||||
| Operating Environment | Cooling Method | Built-in Air Cooling (water cooling optional) | ||||||
| Power Supply | 500W / 220V / 50Hz (110V available) | |||||||
| Temperature & Humidity | 0~40°C, 30%≤RH≤85%, air conditioning required beyond range | |||||||
| Oil Mist & Condensation | Not Allowed | |||||||
| Other Parameters | Operating System | Fly Marking System | ||||||
| File Format | Supports text, QR code, barcode, serial number, graphics, etc. | |||||||
| Machine Dimensions | 660 × 510 × 1460 mm | |||||||
| Packing Size | Main unit: 980×600×370mm, Stand: 1350×350×280mm | |||||||
| Gross Weight | Approx. 63kg | |||||||
APPLICATION SCENARIO

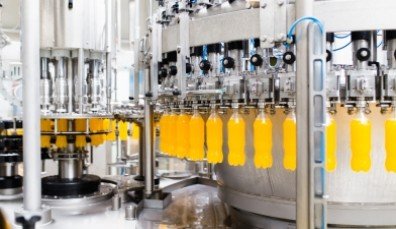

Food, Beverage & FMCG
Pharmaceutical & Medical Devices

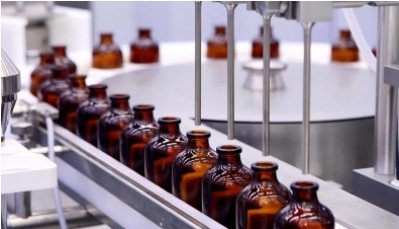

Cosmetics, Personal & Home Care

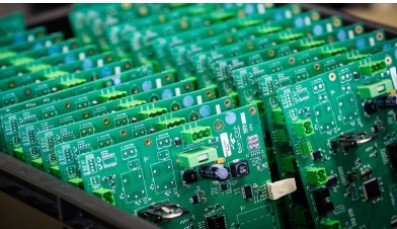

Electronic Components
Garment Accessories
Chemical & Building Materials
MARKING EFFECT

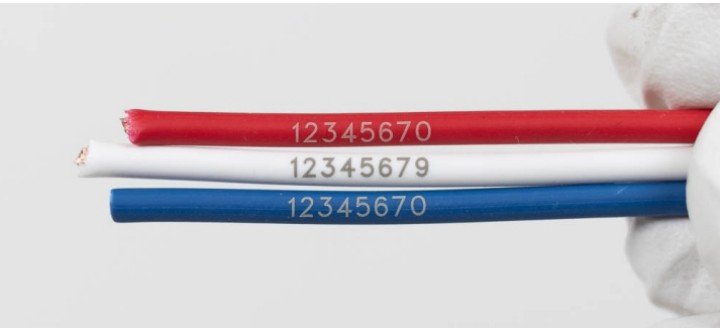

● Cable Marking
● Egg Marking

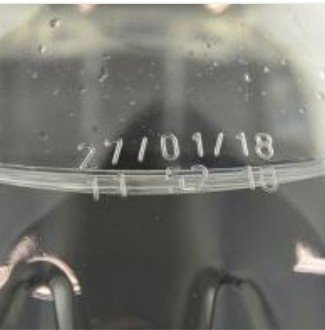

● Water Bottle Marking

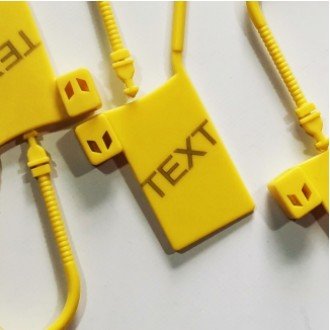

● Tag Marking
● Plastic Bag Marking

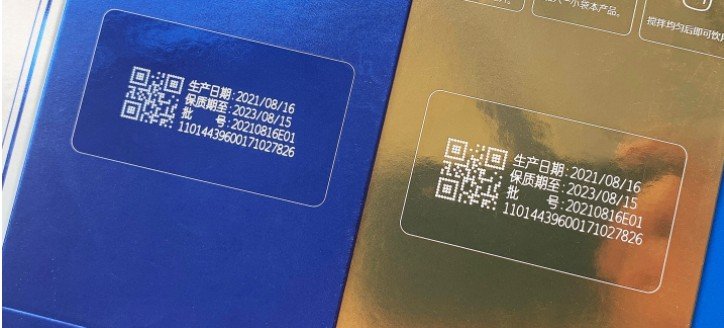

● Paper Box Marking
PRODUCT FEATURES

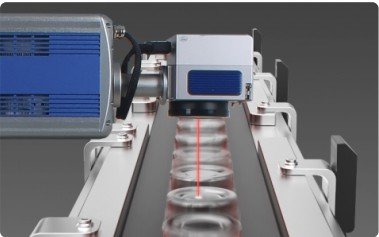

Marking Speed up to 200m/min
As the industry’s high-speed laser marking system, it supports a marking speed of up to 200m/min (for 2mm height single-line characters), ideal for high-speed production lines.

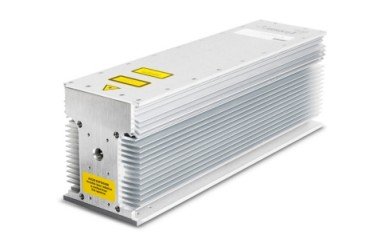

Reliable & Durable CO2 Laser Source
Equipped with Dawei industrial-grade metal RF CO2 laser, stable power output, uniform beam quality, strong anti-interference, ensuring clear and consistent marking effects.

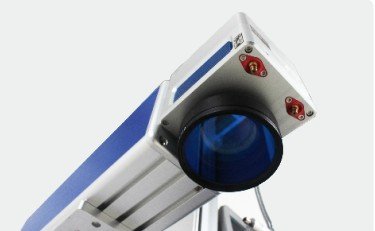

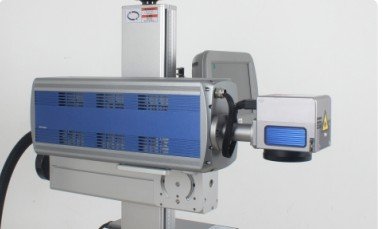

Ultra-compact Design & Flexible Configuration
Adopting compact integrated marking head, easy to install, space-saving, and can be flexibly integrated with various production lines.

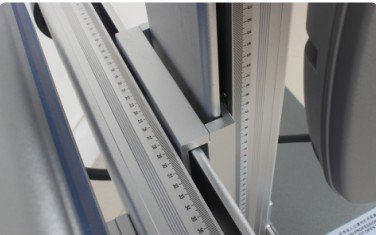

Flexible Installation & Easy Adjustment
The flying marking model can be flexibly installed with production lines. The stand supports up/down/left/right adjustment, and the marking head can rotate 360°.
